AUTO K2 PRO™ - Direct Power Cable
AUTO K2 PRO™ - Direct Power Cable
Currently this item has stock!
24 hour Uninterrupted Power Supply
Parking Surveillance
Easy Installation
Couldn't load pickup availability
24 HOUR SURVEILLANCE: Connect Auto K2 PRO™ to a car ignition and battery source to achieve 24 hour uninterrupted power supply for parked car surveillance.
Reduce and Stabilize Voltage: Reduce 12V or 24V to stable 5V voltage and provide stable power to your dash camera.
AUX Female interface: Connect to car audio using aux cable.
USB Port: Connect Apple or Android phone using a USB cable.
Specifications:
Input voltage: 12V-30V
Material: ABS
Output voltage: 5V / 12V
Output current: 3000 mA
Operating temperature: -20℃ - 70℃
Standby power consumption: below 0.01W

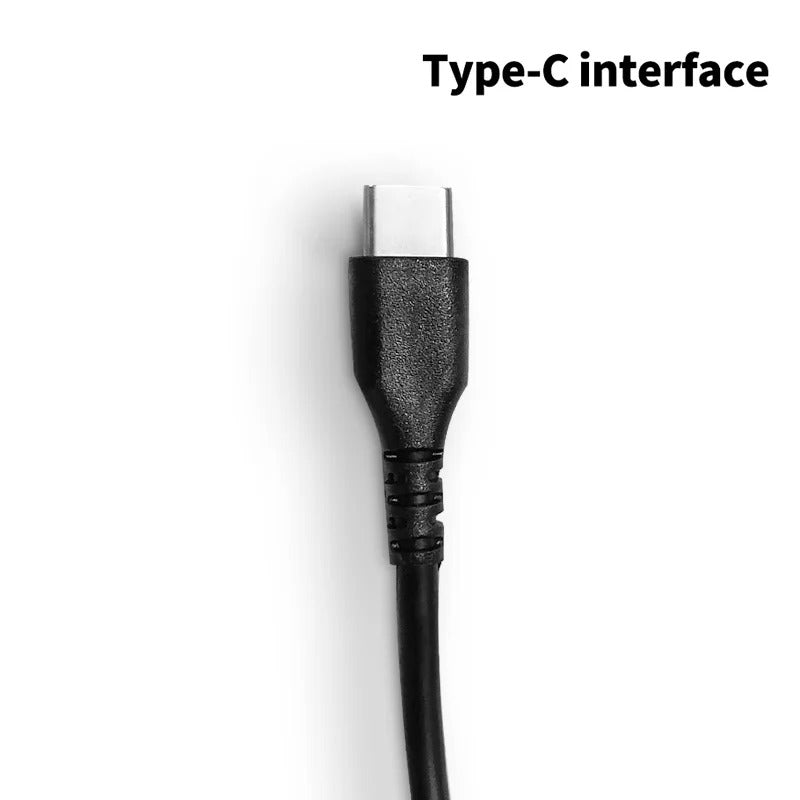

Interface Type: Type-C head
Net weight: 0.085kg
Package Includes:
1 * 3A Direct Power Cable
Frequently Ask Questions
FAQs
What is this direct power cable used for?
This direct power cable is designed to hardwire devices (such as dash cams, GPS trackers, or other 5V electronics) directly to a vehicle’s electrical system. It converts the vehicle’s DC 12V/24V input into a stable 5V output for the device.

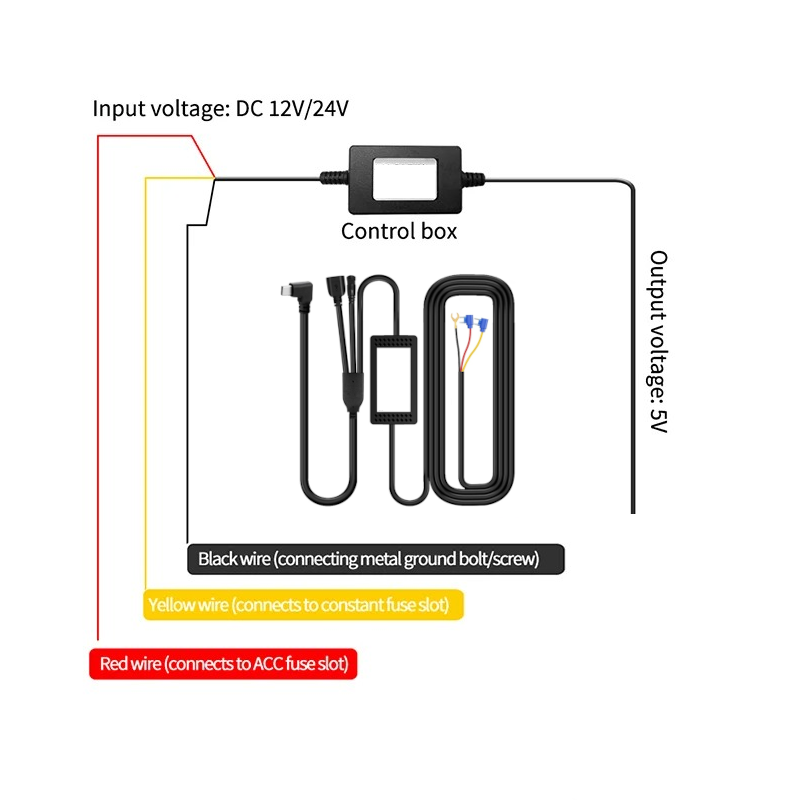

What do the red, yellow, and black wires do?
- Red wire (ACC fuse slot): Connects to an ignition-switched power source. It provides power only when the vehicle is on.
- Yellow wire (constant fuse slot): Connects to a constant power source that is always on, even when the vehicle is off.
- Black wire (ground): Connects to a metal ground point, such as a bolt or screw on the vehicle’s chassis.
Why does the cable need both ACC and constant power connections?
Using both connections allows the control box to manage power intelligently. It can detect whether the vehicle is on or off, enabling features like automatic power on/off, parking mode, or battery protection, depending on the connected device.
What input and output voltages does this cable support?
- Input voltage: DC 12V or 24V (compatible with most cars and trucks)
Output voltage: 5V (suitable for USB-powered devices)
This built-in voltage conversion protects your device from overvoltage.
Is professional installation required?
Professional installation is not strictly required, but it is recommended if you are unfamiliar with vehicle fuse boxes or grounding points. Incorrect wiring may cause fuse issues or device malfunction. Always ensure the vehicle is powered off before installation.
